Product Photo Gallery
Technical Specifications
| Printing Width | 24-inch printing width |
|---|---|
| Dimensions (L × W × H) | 1750 × 800 × 1500 mm |
| Machine Weight | Approximately 180 kg |
| Construction Material | Metal body with high-precision components |
| Print Head | Double i3200 print heads |
| Maximum Resolution | Up to 1440 dpi |
| RIP Software | MainTop / PhotoPrint / FlexiPrint |
| Controller Software | RIIN |
| Ink Type | DTF pigment ink (CMYK + White) |
| Supported Film / Media | DTF film roll (Hot Peel / Cold Peel) |
| Transfer Process | Direct-to-Film (DTF) with powder adhesive |
| Print Direction | Unidirectional / Bidirectional |
| Maximum Printing Thickness | Up to 2 mm |
| Connectivity | USB 2.0 / Ethernet |
| Supported Operating System | Windows 7 / 8 / 10 / 11 |

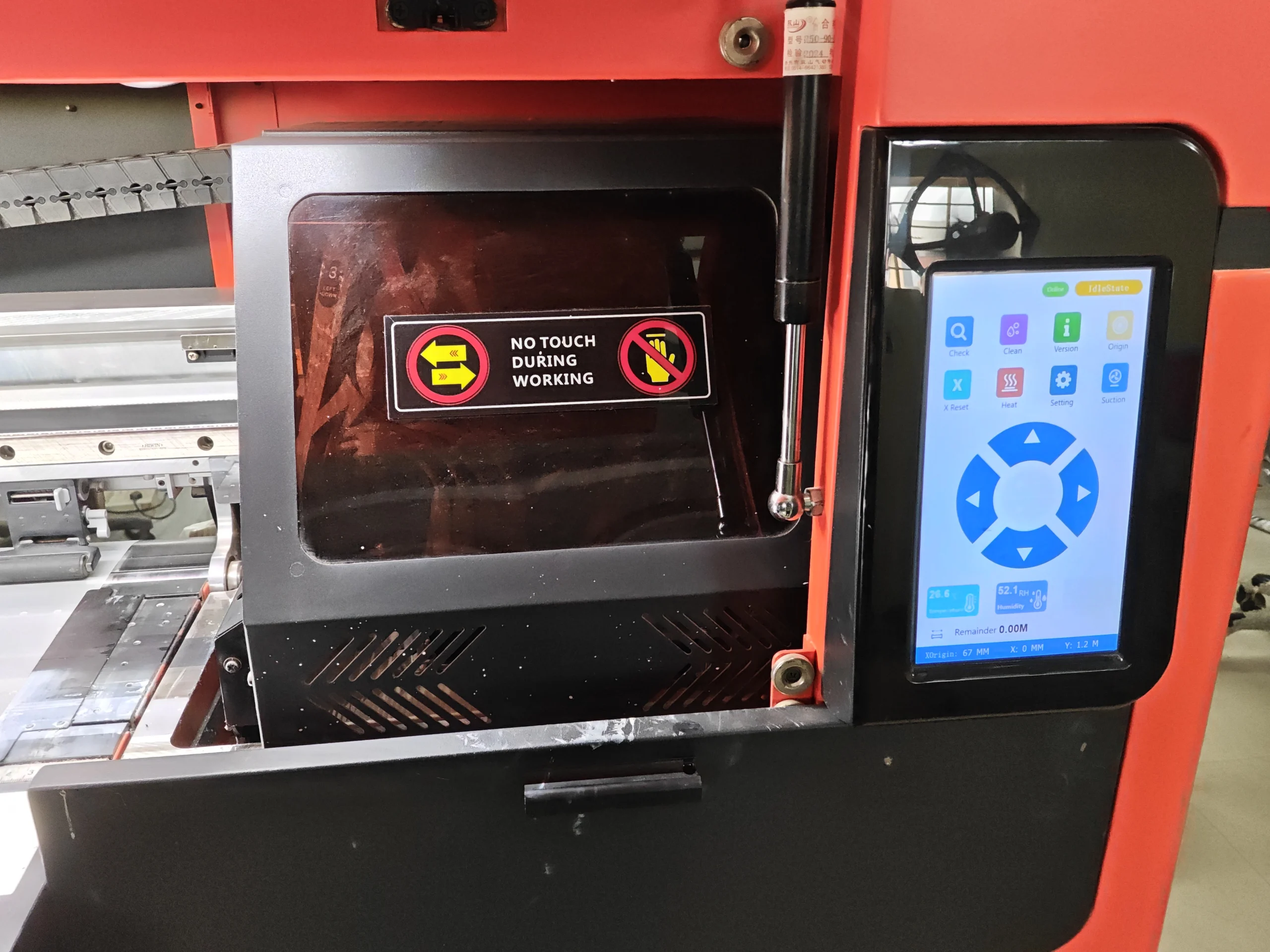

| Control System | Digital panel / Touch screen |
| Maintenance System | Automatic capping and cleaning |
| Working Temperature | 15°C–25°C |
| Humidity Range | 35%–65% RH |
| Voltage | AC 110/220V, 50–60Hz |
| Power Consumption | Approx. 1.5 kW |
| Noise Level | Less than 65 dB |
| Applications | Garment printing, T-shirts, textiles, leather and canvas |
| Motherboard | To be confirmed |
Product Video
YouTube video URL: To be confirmed. A responsive YouTube player will be embedded here.
Questions & Answers
Is installation and training available?
DSSNext can confirm installation, operator guidance and support coverage based on your location and final machine configuration.
Which films, inks and powder should I use?
DSSNext will provide compatible consumable guidance for the selected configuration.
Are actual production speeds always the same?
Actual production varies with artwork coverage, pass settings, machine configuration and operator workflow.
